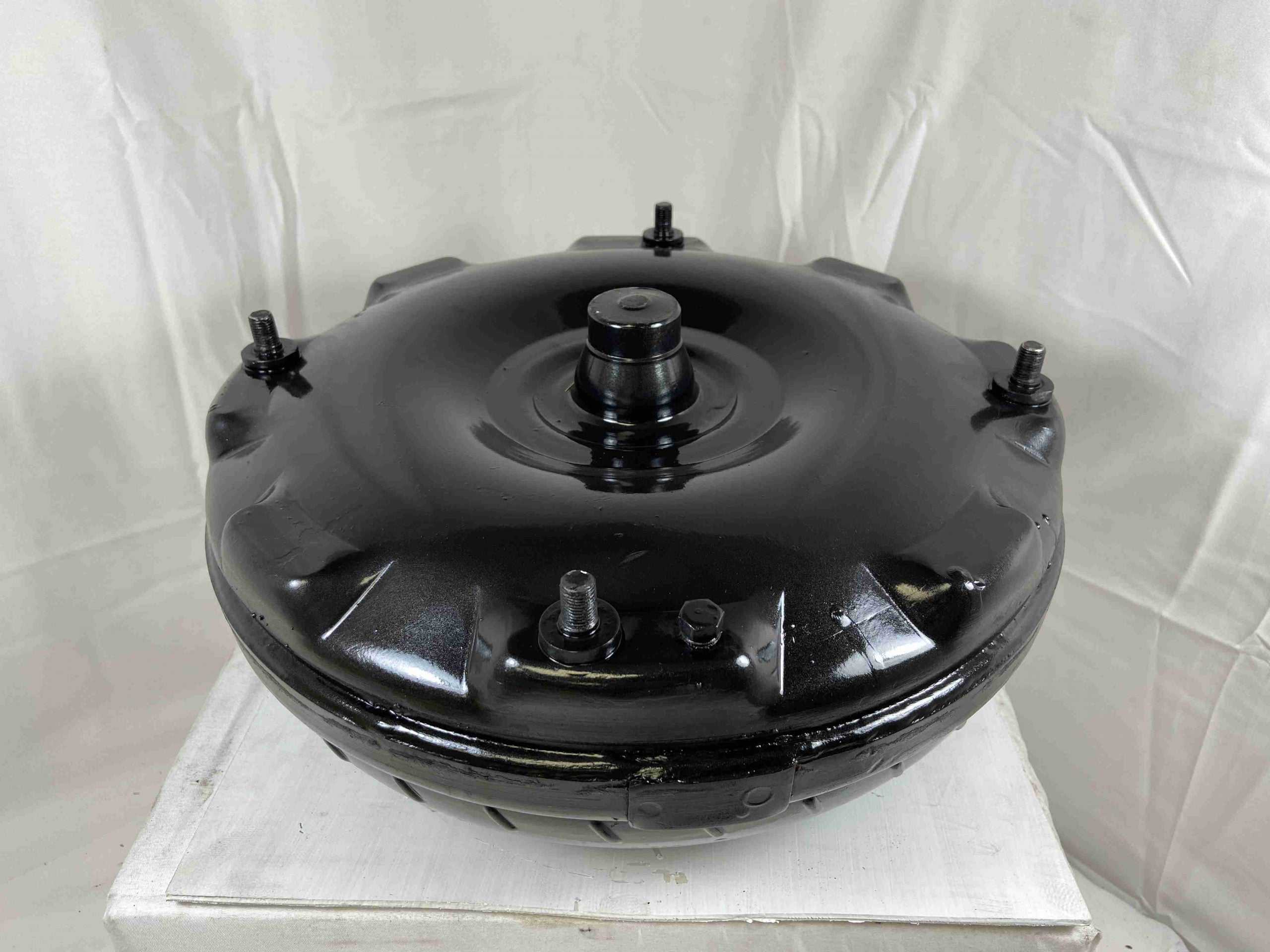

C4 24 Spline Night Stalker Stock Replacement No Stall Added Ford Torque Converter Part Number 25040

Description

Ford
C-4
For a 164 Tooth FlexPlate
Built to A Max Hight of 5 7/8 Inches Tall
Part Number 25040
NIGHT STALKER SERIES
This is A Stock Stall
Stall Range: Stock Stall – NO Stall Added
If this Converter Pulls the Motor Down, Need more Stall
12 inch Core
Bolt Circle: 11 7/16 inches
24 Spline Turbine Hub Precision CNC Machined
Count the Tops of Each Tooth on the Smaller Shaft
Built to 5 7/8 inch Tall
For the Big Bellhousing
Use the 164 Tooth Flywheel
Hardened Chrome Moley Impeller Hub
Torrington Style Incased Bearings
Modified Extreme Duty Stator
1.375 inch Crank Pilot Precision CNC Machined
Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY)
NO – Anti-Balloon Plates
Fins are 4 corner Tac Welded or Furnace-Brazed
Leak & Pressure Tested
Digitally Balanced
Quality Inspections at Every Step
TIP : Use Old School Type F Transmission Fluid For Best Results
TIP : Always Use an Additional Transmission Cooler
TIP : Use Blue Loctite

” MADE IN THE USA “

* NOTE : ALL Advertised Stalls are based on a Specific Vehicle’s Setup. All stall Ranges Will Vary depending on your vehicle’s setup. Please contact us for more information (888) 267-7464

Building High Performance & Racing Converters Since 1970! Veteran Owned and Family Run.

We recommend upgrading to a “Street Bandit Series” torque converter if you have upgraded 2 items like; Intake, Heads, Headers, Exhaust, Cam, or Gearing

We recommend upgrading to an “Out Law Racing Series” torque converter if you have any Power Adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brake
